SSMA Male Nickel Plated RF Connector for 1#Semi-rigid/flexible Cable
The SSMA Series RF coaxial connector is a more compact version of the SMA connector. It is known for its small size, broad frequency range, and high dependability. This connector is extensively utilized in various sectors such as aviation, aerospace, and microwave communication.
Specifiacation of SSMA Rf Connectors:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electronic and Material Characterials |
| Impedance | 50Ω |
| Frequency Range | DC~30GHz |
| Rated Voltage | 250 VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) |
| VSWR | ≤1.3 |
| Insulation Resistance | ≥2000MΩ |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated |
| Shell and other metal parts | Brass gold plated |
| Stainless steel passivated |
| Cable sheath | Brass nickle plated |
| Insulator | PTFE |
| Seal ring | Silicon rubber |
| Mating torque | 0.79 -1.13 N.m |

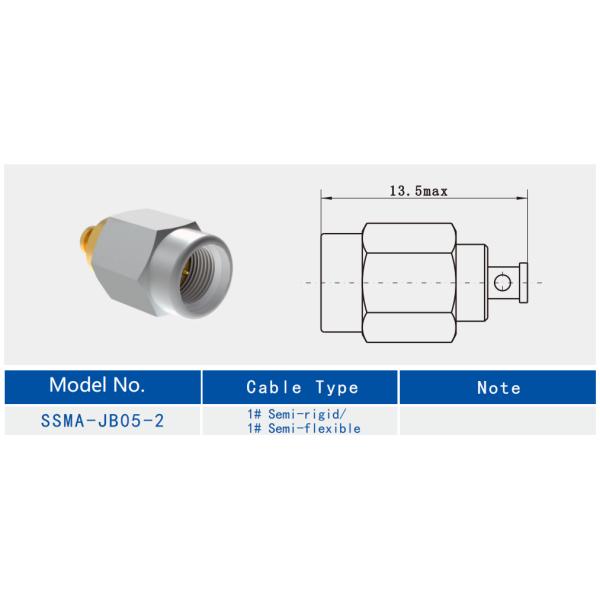

Outline Drawing:(Unit:mm)
Advantages:
1. Miniaturized Size: SSMA connectors are smaller than their SMA counterparts, making them suitable for applications where space is at a premium.
2. Broad Bandwidth: SSMA connectors can cover a wide range of frequencies, typically supporting signals from DC to 18 GHz or even higher.
3. High Reliability: Manufactured using high-quality materials and precision manufacturing processes, SSMA connectors ensure good mechanical strength and durability.
4. Low Insertion Loss: Within their operating frequency range, SSMA connectors exhibit low signal attenuation, helping to maintain signal integrity.
Application:
1. Aerospace & Aviation: In satellite communications, navigation systems, flight control systems, and other aerospace electronics, SSMA connectors are used to ensure uninterrupted signal transmission.
2. Microwave Communication: SSMA connectors are used to connect antennas, amplifiers, signal splitters, and other RF components in microwave links and point-to-point wireless communication systems.
3. Test Equipment: In RF test and measurement equipment, SSMA connectors are commonly found on signal generators, network analyzers, spectrum analyzers, and other high-frequency testing devices.
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
