SSMA Series Female Mini SMA RF Connector for 1#Semi-rigid/flexible Cable
The SSMA Series RF coaxial connector is an even more compact variant of the SMA connector, recognized for its diminutive dimensions, wide frequency range, and high reliability. This type of connector is widely deployed across diverse sectors, including aviation, aerospace, and microwave communications.
Key Features:
1. Environmental Stability: SSMA connectors can withstand various environmental conditions, including temperature changes, humidity, vibration, and mechanical shock.
2. Easy Installation: Their smaller size and streamlined design make SSMA connectors easy to install and route in dense or compact designs.
3. Versatile Interface Options: SSMA connectors are available in different interface types, such as straight-through, right-angle, and panel-mount, to accommodate different circuit and equipment layouts.
Specifiacation of SSMA Rf Connectors:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electronic and Material Characterials |
| Impedance | 50Ω |
| Frequency Range | DC~30GHz |
| Rated Voltage | 250 VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) |
| VSWR | ≤1.3 |
| Insulation Resistance | ≥5000MΩ |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated |
| Shell and other metal parts | Brass gold plated |
| Stainless steel passivated |
| Cable sheath | Brass nickle plated |
| Insulator | PTFE |
| Seal ring | Silicon rubber |
| Mating torque | 0.79 -1.13 N.m |
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Application:
1. Telecommunications: Within telecommunications infrastructure, SSMA connectors may be used to connect base stations and other communication equipment.
2. Wireless Communication: In wireless networking equipment like wireless routers and wireless network cards, SSMA connectors help facilitate high-speed data transfer.
3. Automotive Industry: In certain automotive applications, such as vehicle networking communication systems, SSMA connectors can be used to ensure stable signal connections.

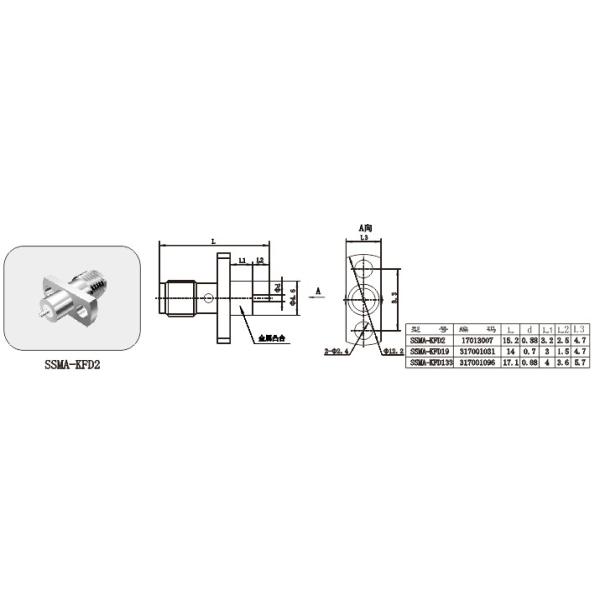

Interface Dimentions:
Related Product
1.Mini SMA Microstrip series 2 Hole Flange Connectors
2.Mini SMA PCB Panel Mount 4 Hole Flange Connectors
3.SMA Female RF Connectors for cable RG178
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
