CXN3506/MF108A SSMP Female Connector Full Detent Interface Depth 2.11

Name: CXN3506MF108A SSMP Female Connector Full Detent Interface Depth 211
Brand: ELT (Elite)
Price: 1 USD

Wholesale CXN3506/MF108A SSMP Female Connector Full Detent Interface Depth 2.11 from china suppliers

Brand Name : ELT (Elite)

Model Number : SSMP-JF506-5

Certification : CE ROHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1,000,000pcs per month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Product name : SSMP Connector

Gender : Female

Material : Brass

Plating : Gold Plated/ Nickel Plated

Impedance : 50Ω

Frequency Range : DC~50GHz

Rated Voltage : 170VRMS*

Insulation Resistance : ≥2000MΩ

Contact Now

SSMP Female Right Angle Full Detent, Interface depth 2.11 Flange Mount RF Cable Connector for CXN3506/MF108A

The SSMP interconnect system relies on a floating femaleto-female adapter, commonly referred to as a “bullet” to enable stacking

of boards equipped with an SSMPmale PCB connector. The durable construction and ability to tolerate radial and axial misalignment

allows for a blind-mate interconnect solution that can withstand multiple engagement/disengagement cycles without degradation in
electrical performance.

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~50GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor		Normal≤3.5mΩ, Sealing≤5mΩ
	Center conductor		Normal≤8mΩ, Sealing≤30mΩ
	DC~18GHz	18~26.5GHz		26.5~40GHz	40~50GHz
VSWR	≤1.25	≤1.3		≤1.4	≤1.5
Material & Mechanical Characteristics
Center Conductor	Male		Sn-P Bronze/Kovar, Gold plated
	Female		Beryllium bronze, Gold plated
Elastic Contact	Beryllium bronze Gold plated
Shell and other Metal Parts	Brass/Kovar Gold plated Stainless steel Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	≤1.01325×10-3Pa·cm3/s

Features

* Frequency Range: DC - 50GHz
* 50Ω Impedance; Blindmateable configuration
* Ability to withstand Radial/Axial Misalignment
* Board-mount, Field-replaceable, Bullets, Hermetic and Cable Connector configurations
* Custom Connectors Available

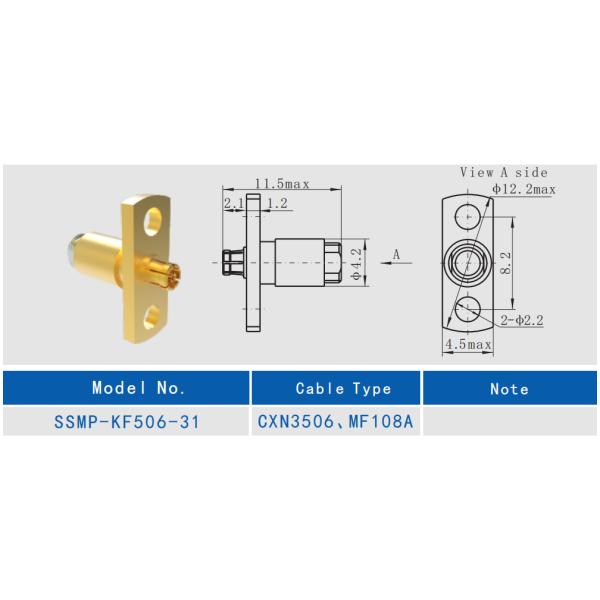

Detailed Drawing

CXN3506/MF108A SSMP Female Connector Full Detent Interface Depth 2.11

Application:

* Network

* Satcom

* Computer/LANs

* Base Station

* Outdoor facilities

* Automotive

* Jump line join

* Basic facility

* Radar,microwave

* Telecommunications

* Mobile communication

* Instrumentation

* Radio, TV aerial system

Related Products:

CXN3506/MF108A SSMP Female Connector Full Detent Interface Depth 2.11

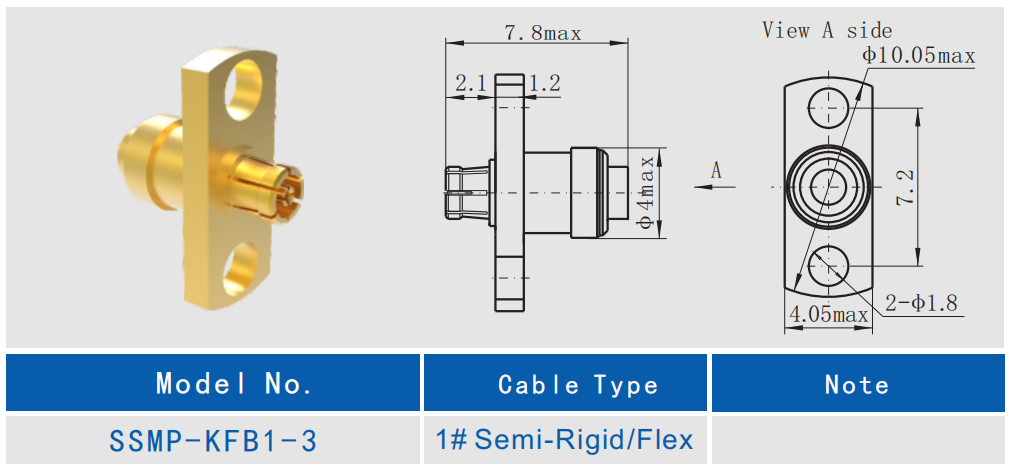

SSMP Female Cable Connector for 1#Semi-Rigid/Flex Flange Mount Type

CXN3506/MF108A SSMP Female Connector Full Detent Interface Depth 2.11

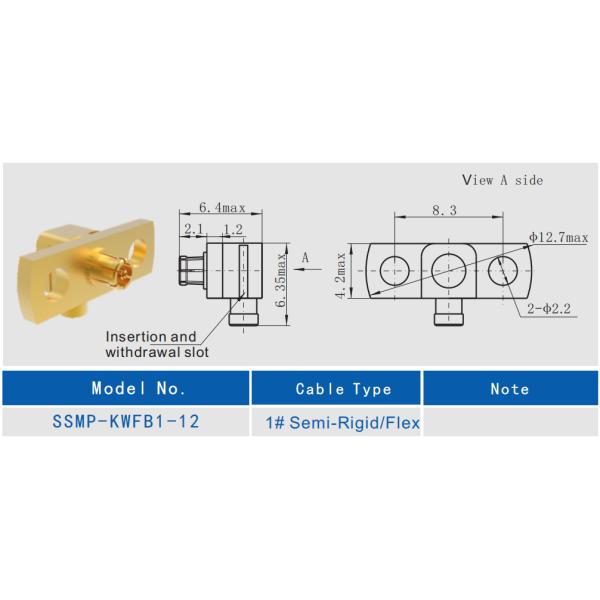

SSMP Female Cable Right Angle Connector for 1#Semi-Rigid/Flex Flange Mount Type

CXN3506/MF108A SSMP Female Connector Full Detent Interface Depth 2.11

SSMP Female Cable Connector for 2#Semi-Rigid/Flex Flange Mount Type

CXN3506/MF108A SSMP Female Connector Full Detent Interface Depth 2.11

SSMP Female RF Cable Connector for CXN3506/MF108A Cable Flange Mount Type

CXN3506/MF108A SSMP Female Connector Full Detent Interface Depth 2.11

SSMP Female RF Cable Connector for CXN3506/MF108A Cable Flange Mount Type

CXN3506/MF108A SSMP Female Connector Full Detent Interface Depth 2.11

SSMP Female Right Angle(RA) for CXN3506/MF108A with Active Flange Mounting Type

Product Cataloge:

RF Adapter

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

RF Cable Assemblies

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

TNC RF Connector

N Type RF Connector

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

Packaging Details:

* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
