SMP Male (Plug) Termination (Load) 0.5W/1W Gold Plated 1.35 Max VSWR
SMP male RF load from Xi'an Elite Electronic is 50 Ohm impedance and is rated for a maximum frequency of 40GHz. Dummy load / RF termination has a maximum VSWR of 1.35:1. Additional male SMP RF load specs for this component can be found by contacting us.
The low-power matched RF load designed and produced by Xi'an Elite Electronics has an impedance of 50Ω, including SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm and other male and female interfaces, which can meet different needs of users.
| Electrical data | Requirments | | Frequency range | DC-40GHz | | Characteristic impedance | 50Ω | | VSWR | ≤1.35(40GHz)/1.2(18GHz) | | Power | 0.5W(40GHz)/1W(18GHz) | | | | | | Mechanical data | Requirments | | Durability (matings) | ≥500 | | | | | | Environmental data | Requirments | | Temperature range | -55℃ to 125℃ | | | | | | Material data | Requirments | | Connector parts | Material | Plating | | Body | Brass | Gold | | Coupling nut | Brass | Gold | | Pin contacts | Beryllium copper | Gold | | Insulators | PTFE | |

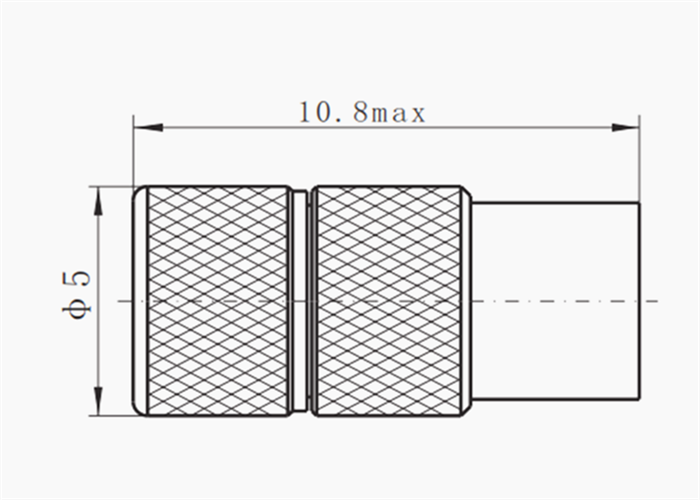

Details of SMP Male (Plug) Termination (Load) 0.5W/1W, Gold Plated 1.35 Max VSWR
Advantage :
* High Reliable
* Reliable Mechanical Performance
* Wide Frequency Range from DC to 18GHz
Applications :
- General Purpose Test
- Communication
- Precision Test and Measurement
◆ Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ Widely used for In-building Solutions
Material Specifications:
Housing Type Brass, Stainless Steel
Passivated
Center Contact Beryllium Copper
Gold Plated
Since the matched load needs to be customized according to your needs, please provide the following requirements when you send us inquiry:
*The frequency range you need.
*Power requirement.
*Connector type
*Your special requirements if you have (VSWR, temperature, size, etc.)
Shipping Service:
The shipment will be delivered via major global expresses, such as DHL, UPS, FedEx etc. Currently, it will be sent out from Xi'an, China.
