1 Watts Power Male Plug Termination Load 18 GHz 1.25 VSWR

  • 1
  • 2

Brand Name : ELT

Model Number : TNC-50JR-1W

Certification : CE ROHS

Place of Origin : Shaanxi, China

MOQ : 100

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000000 Pieces Per Month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Impedence : 50 Ohm

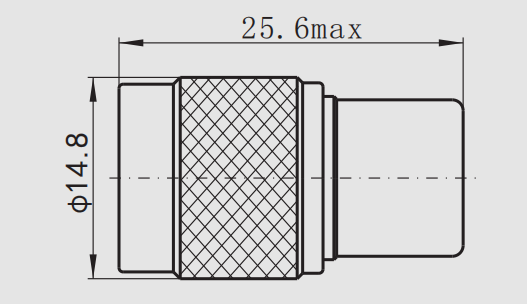

Length : 25.6mm Max

Diameter : φ14.8

Frequency Range : DC-18GHz

Housing : Brass

Note : Cylindrical Resistor

Contact Now

TNC Male (Plug) Termination (Load) 1 Watts low Power To 18 GHz 1.25 VSWR 1Watts Power

TNC male RF load from Xi'an Elite Electronic is 50 Ohm impedance and is rated for a maximum frequency of 18 GHz . Dummy load / RF termination has a maximum input power of 10 Watts and a maximum VSWR of 1.35:1

The low-power matched RF load designed and produced by Xi'an Elite Electronics has an impedance of 50 Ω, including SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm and other male and female interfaces, which can meet different needs of users.

Model No. TNC-50JR-1W
Power 1W
Frequency Range DC-18GHz
VSWR ≤1.25
Note Cylindrical Resistor

1 Watts Power Male Plug Termination Load 18 GHz 1.25 VSWR

Details of TNC Male (Plug) Termination (Load) 1 Watts low Power To 18 GHz 1.25 VSWR 1Watts Power


Advantage :

* High Reliable


* Reliable Mechanical Performance


* Wide Frequency Range from DC to 18GHz

Applications :

  • General Purpose Test
  • Communication
  • Precision Test and Measurement

◆ Wide Frequency Band

◆ 2G/3G/4G/LTE Coverage

◆ Low VSWR

◆ Widely used for In-building Solutions

Key Features:
Polarity Standard
Interface TNC(Male)
Impedance 50Ω
Body Shape Straight
50 ohms nominal impedance is standard
Performance Features:
Frequency Range: DC~18GHz
VSWR DC~18GHz: ≤1.25
Average Power ≤2W
Durability 500 Cycles
Operating Temperature -55℃~+125℃
Material Specifications:
Housing Type Brass, Stainless Steel
Passivated
Center Contact Beryllium Copper
Gold Plated

Shipping Service:

The shipment will be delivered via major global expresses, such as DHL, UPS, FedEx etc. Currently, it will be sent out from Xi'an, China.


Product Tags:

Male Plug Termination Load



1.25 VSWR RF Termination Load



18 GHz RF Terminator
