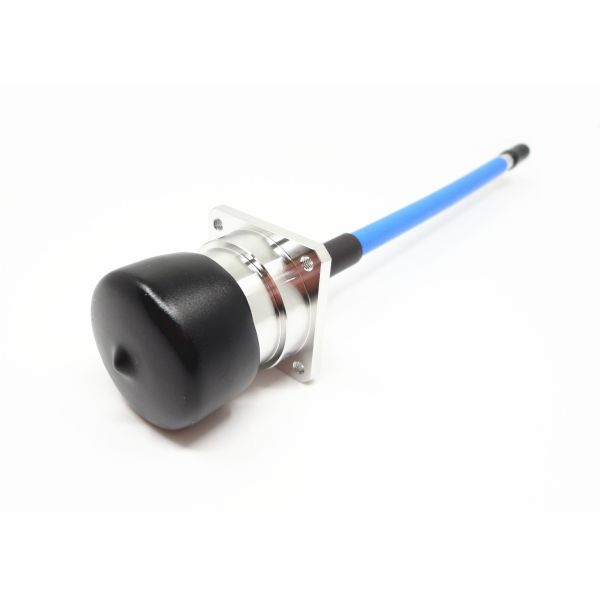

7/16 DIN Straight Male RF Connector For .250 Coaxial Cable

Brand Name : ELT (Elite)

Model Number : 7/16-J250-179

Certification : CE ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1,000,000 Pieces Per Month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Product name : Din 7/16 RF Coaxial Conector

Material : Tin phosphor bronze silver plating

Impedance : 50Ω

Frequency Range : DC~7.5GHz

Model : 7/16-J250-179

Gender : Male

Contact Now

7/16 DIN Straight Male RF Connector For .250 Coaxial Cable

The name of the 7/16 series is derived from the metric dimensions of the connector interface: inner contact diameter 7mm, outer contact inner diameter 16mm. These connectors have excellent performance in terms of return loss and intermodulation distortion (IMD).

These connectors are very strong, very stable, and are mostly WATER-resistant, making them IDEAL FOR APPLICATIONS where vibration resistance and environmental protection ARE important. Since the 7/16 connector is designed to minimize signal distortion due to intermodulation, it is particularly suitable for base stations and broadcast communication systems.

Product Specification:

7/16 DIN Straight Male RF Connector For .250 Coaxial Cable

Electrical Characteristics

Impedance 50Ohm
Frequency range DC~7.5GHz
PIM3 ≤161dBc
VSWR ≤1.15(0-3GHz)
Dielectric Withstanding Voltage 2700V rms
Test voltage 4000V rms

Material & Mechanical Characteristics

Center Conductor Tin phosphor bronze, Silver Plating
Insulators PTFE
Body Brass Ternary Alloy Plating
Other Metal Parts Brass, Alloy Plating
Gasket Silicone Rubber

Product Features:

  • The coaxial cable of the radio frequency components (7/16 DIN/N/TNC/BNC/FME/U.F L/IPEX L9 / SMA/SMB/MMCX MCX/OEM)

    Our custom RF cable assemblies are built in worldwide

    50 Ohm RF cable assemblies can be ordered using the following connector types, such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, 75 Ohm cable assemblies can be manufactured using the following 75 ohm connectors, such as BNC, F, N, SMB, SMC, TNC, and Mini SMB

    Rf cable assemblies can be produced in a variety of different connector types and custom lengths depending on your needs and applications

    If you need a special RF cable assembly configuration not found here, you can call our sales department to create your own RF cable assembly

    The RF cable assembly includes: RG141/RG142/RG174/RG178/RG179/RG180/RG187/RG196/RG1213/RG214/RG218/RG219/RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG 402/RG405/RG58/U

Purchasing of ready-made microwave cable assembly lines provides important benefits:

• Perfect assembly, no defective products

• No assembler training required

• No capital investment for assembly preparation

• Precisely matched cables and connectors

The same manufacturer

• Xi 'an Elite electronic quality assurance

Assembly shop capability:

*Automatic stripping

*Automatic laser stripping

*Temperature controlled soldering

*Clean room

*Laser marking

Applications:

* Computer/LANs

* Base Station

* Automotive

* Basic facility

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Radio, TV aerial system

Product Cataloge:

RF Adapter
RF Cable Assemblies
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
Waveguide To Coaxial Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)
