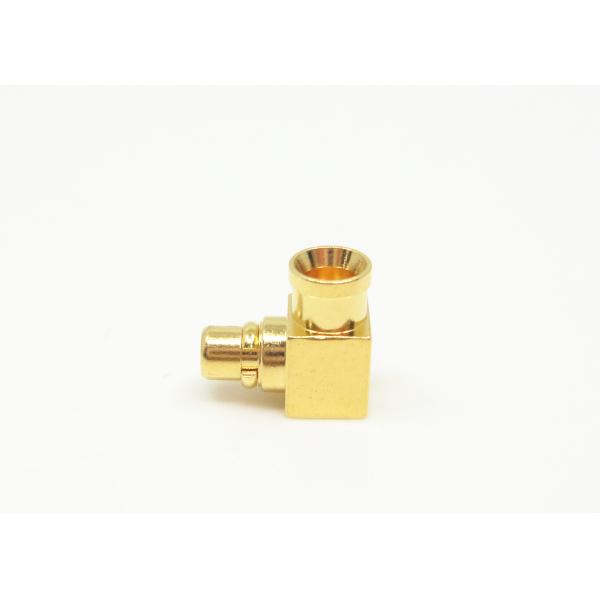

Right Angle Bulkhead MMCX Antenna Connector Male Gender with Gold Plated

Name: Right Angle Bulkhead MMCX Antenna Connector Male Gender with Gold Plated
Brand: ELT (Elite)
Price: 1 USD

Wholesale Right Angle Bulkhead MMCX Antenna Connector Male Gender with Gold Plated from china suppliers

Brand Name : ELT (Elite)

Model Number : MMCX-JWB2

Certification : CE ROHS

Place of Origin : China

MOQ : 100

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100pcs per week

Delivery Time : 5-8 work days

Packaging Details : Standard Export Carton

Product name : MMCX Series Connector

Gender : Male

Plating : Gold Plated

Material : Brass,Beryllium bronze

Impedance : 50Ω

Durability : 500 Cycles

Type : Right Angle

Contact Now

Male Plug MMCX Right Angle Bulkhead RF Coaxial Connector with Gold Plated

MMCX series is a kind of micro insertion stop RF coaxial connector which is smaller than MCX, widely used in the small communication devices and network devices that strict requirements for volume and weight.

Applications of the MMCX connectors are those where size, weight, performance and ease of assembly are the driving considerations to the final design decision. Typically, these include GPS, wireless communications (WLAN and mobile) and automotive.

Right Angle Bulkhead MMCX Antenna Connector Male Gender with Gold Plated

Specification

Electrical Characteristics
Impedance		50Ω
Frequency Range		DC~6GHz
Rated Voltage		170VRMS*
Dielectrics Voltage-resistance		500VRMS*
Insulation Resistance		≥2000MΩ
Center Resistance		Center Conductor	≤10mΩ
		Outer Conductor	≤5mΩ
VSWR		≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Brass Gold plated
	Female	Beryllium bronze Gold plated
Elastic Contact		Beryllium bronze Gold plated
Shell and other Metal Parts		Brass Gold plated
Crimping Sleeve		Brass Nickel plated
Insulators		PTFE
Sealing Ring		Silicone Rubber
Durability		500 cycles

RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500Cycles
Contact Retention	10N min
Cable Retention	100N min
Mating Force	13.6N max
Un-Coupling Force	13.6N max

Detailed Images

Features:

-Low cost combined with high quality.

-Broadband performance with low reflection from DC to 6 GHz.

-Quick connect/disconnect snap-on mating.

-50 Ohm impedance

- Available for affixement to industry standard cable and as a printed circuit board device

-Provide repeatable performance

Application:

* Network

* Satcom

* Computer/LANs

* Mobile communication

* Instrumentation

* Base Station

* Mobile communication

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radio, TV aerial system

Product Cataloge:

RF Adapter

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

RF Cable Assemblies

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

TNC RF Connector

N Type RF Connector

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

NOTE:
We have over 10,000 types of MMCX Connector, if the connector you are using is not found, please contact us with your details.
