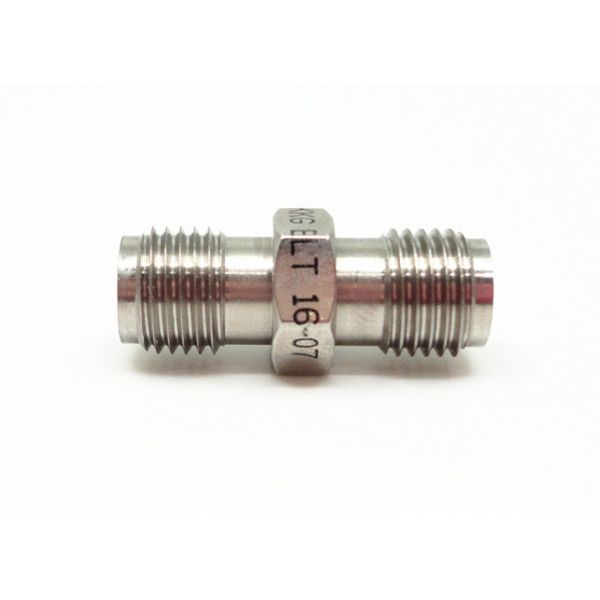

Stainless Steel Straight 2.4mm Female to Female Straight (MMW)Millimeter Wave Adapter
The 2.4mm type products are a kind of high performance millimeter wave (MMW)connectors, the frequency is 50 GHz, use air interface threaded connect,with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.
The high precision 50 ohm coaxial 2.4mm connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.
Specification of Stainless Steel Straight 2.4mm Female to Female Straight (MMW)Millimeter Wave Adapter(mm):
| Impedance | 50 Ω |
| Frequency Range | DC - 50 GHz |
| Voltage Rating | 150 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 500 VRMS (Max. Sea Level) |
| Voltage Standing Wave Ratio
VSWR | ≤ 1.3 |
| Contact Resistance | Center Conductor ≤ 4.0 mΩ |
| | Outer Conductor ≤ 2.5 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| | Female Jack: BeCu, Gold Plated |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated
Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
| Insertion loss | <.04 sqrt(f(GHz)) dB |
| Temperature range | -65 ℃~+165 ℃ |
| Contact pin | Gold Plating |
Features of Stainless Steel Straight 2.4mm Female to Female Straight (MMW)Millimeter Wave Adapter(mm):
•Connectors in End Launch and Flange options
•Adapters to 2.4mm, SMP, 2.92mm, SMA.
•Great for applications that require high frequency transmission
•Connector mating interface per MIL-STD-348
•Excellent reliability where extreme shock & vibration conditions are experienced
•Quick connect cable plugs and adapter
•The 2.4mm connector is a precision microwave connectors.
•Stainless steel construction
•Superior electrical performance to 50 GHz
Application of Stainless Steel Straight 2.4mm Female to Female Straight (MMW)Millimeter Wave Adapter(mm):
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications
* Research centres
* Satellite communications
