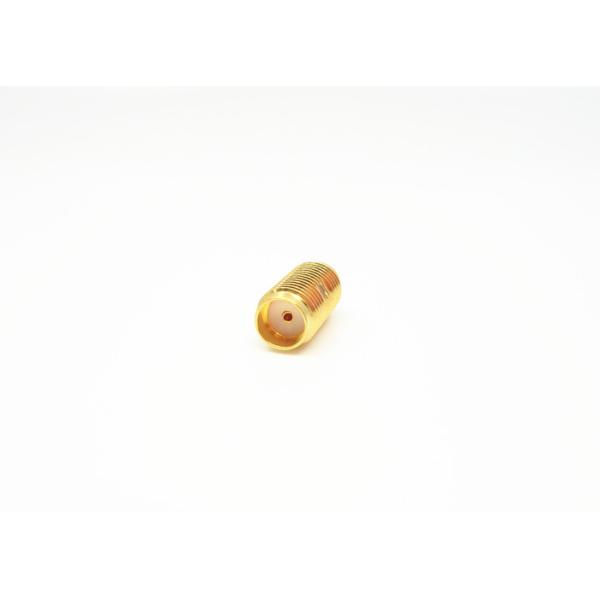

Gold Plated RF Adapter Straight 50Ohm SMA Female to SMA Female
TYPE SMA is one kind of RF coaxial connectors that is widely applied, with small sized thread coupling. Characteristic impedance is 50ohm. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or microstrip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system.The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.
Features:
1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 hole panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).
Specifiacation:
| Interface | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |
Detailed Drawing
Application:
* Network
* Satcom
* Computer/LANs
* Instrumentation
* Base Station
* Mobile communication
* Outdoor facilities
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide To Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
