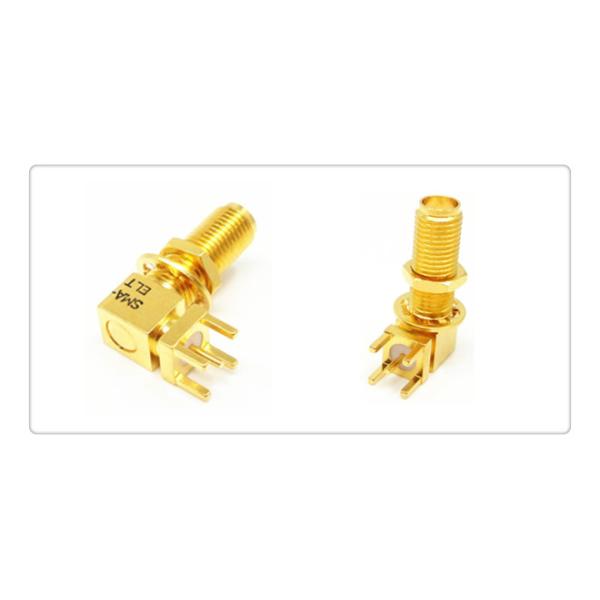

Right Angle Bulkhead Threaded PCB Panel Soldering Mount SMA RF Connector

Brand Name : ELT (Elite)

Model Number : SMA-KYWHD

Certification : ROHS, ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1,000,00 Pieces Per Month

Delivery Time : Within 3-4 weeks

Packaging Details : Standard Export Carton

Item : SMA RF Conector

Plating : Gold Plated

Gender : Female

Impedance : 50Ω

Frequency : DC~18GHz

Lifetime : 500 Cycles

Body : Brass

Application : audio/vedio/microwave

Contact Now

Right Angle Bulkhead Threaded PCB Panel Soldering Mount SMA RF Connector

1.Built in accordance with MIL-C-39012, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.

2.SMA 50 ohm connectors are semi-precision units that provide excellent electrical performance from DC to 20 GHz and outstanding mechanical durability.

3.SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.

Right Angle Bulkhead Threaded PCB Panel Soldering Mount SMA RF Connector

Right Angle Bulkhead Threaded PCB Panel Soldering Mount SMA RF Connector

Specifiacation of SMA Rf Connectors:

Interface according to IEC60169-15
Impedance 50Ω
Freqency Range DC to 18GHz
Insertion Loss ≤0.30dB
VSWR ≤1.2(DC-6GHz)
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤3mΩ
Outer Contact Resistance ≤2mΩ
Mating Cycles ≥500
Temperature Range -65-+165℃
Dielectric PTFE

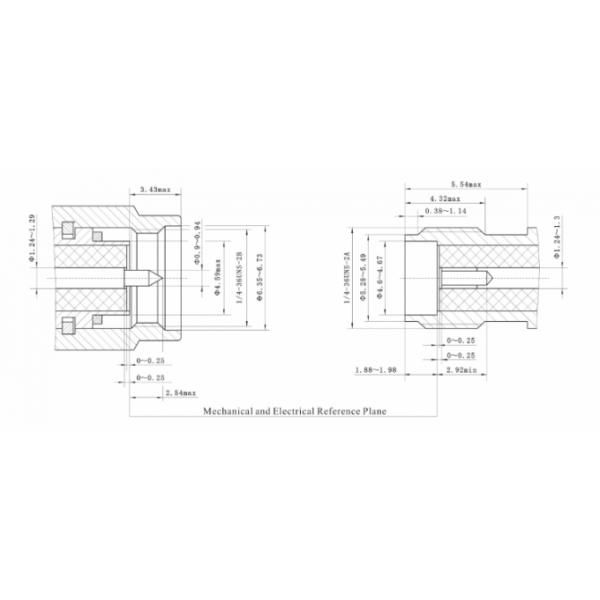

Outline Drawing:(mm)

Right Angle Bulkhead Threaded PCB Panel Soldering Mount SMA RF Connector

Model No. L Note
SMA-KYWHD 14.8
SMA-KYWHD1 13.5

Right Angle Bulkhead Threaded PCB Panel Soldering Mount SMA RF Connector

Material & Mechanical Characteristics:

Material & Mechanical Characteristics
Center Conductor Male Brass Gold plated
Female Sn-P Bronze Gold plated
Elastic Contact Beryllium bronze Nickel plated
Shell and other Metal Parts Brass Nickel plated
Stainless Passivation
Crimping Sleeve Brass Nickel plated
Tightening torque of connection 0.79－1.13N .m
Durability 500 cycles
Sealing Ring Silicone Rubber
Insulators PTFE

Application:

  1. Microwave Systems Telecommunications
  2. Space
  3. 5G Solutions
  4. Measurement Systems
  5. Mobile Telephone WiFi Antennas Systems

Related Product

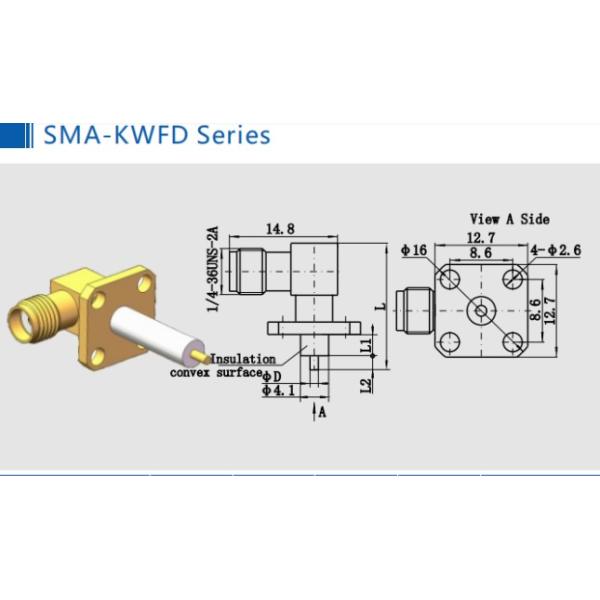

1.SMA 4-Holes Flange Mount Right Angle RF Coax Connectors

Right Angle Bulkhead Threaded PCB Panel Soldering Mount SMA RF Connector

Model No. L L1 L2 D Note
SMA-KWFD 29 15 2.9 1.3
SMA-KWFD8 15.1 3 1 1.3
SMA-KWFD103 22.4 5.4 5.7 1.3
SMA-KWFD113 34 20 2.9 1.3
SMA-KWFD118 20.1 4.8 4.2 1.3
SMA-KWFD-120 16.1 4 1 1.3
SMA-KWFD122 17.1 203 4 1.3

NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
