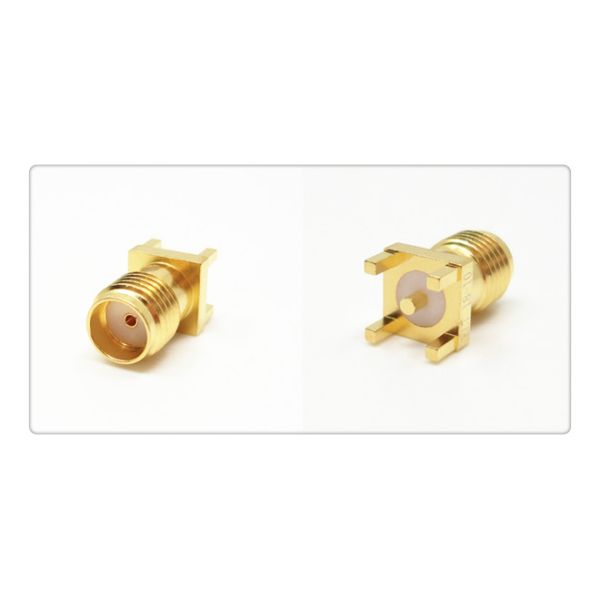

SMA RF Connector Straight Female Edge PCB Mount Connector
SMA series is a kind of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume, good bandwidth,superior electrical characteristics. SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.
SMA - KHD.pdf
Specification:
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | Connect with solf cable DC~12.4GHz |
| Connect with semi-rigid cable DC~18GHz |
| Rated Voltage | 335VRMS* |
| Dielectrics Voltage-resistance | 1000VRMS* |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated |
| Elastic Contact | Beryllium bronze Nickel plated |
| Shell and other Metal Parts | Brass Nickel plated |
| Stainless Passivation |
| Crimping Sleeve | Brass Nickel plated |
| Insulators | PTFE |
| Sealing Ring | Silicone Rubber |
| Durability | 500 cycles |
| Tightening torque of connection | 0.79－1.13N .m |
Advantages:
√ Specializes in manufacturing RF connector more than 20 years
√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500
experienced workers with over 10 production line
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery
√ Competitive price
√ Monthly average turnover is 10 million
√ Custom-made (ODM) orders welcome here
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ We are committed to providing high-quality products to customers
√ Have long and rich cooperation experience with national project components supply
Outline Drawing:(mm)
| Model No. | L | L1 | L2 | D | D1 | Note |
| SMA-KHD | 13.5 | 4 | 4 | 1.3 | 1.4 | |
| SMA-KHD109 | 12 | 2.5 | 2.5 | 1.3 | 1.4 | |
| SMA-KHD112 | 12 | 2.5 | 1.6 | 1.3 | 1.4 | |
| SMA-KHD117 | 13.5 | 4 | 4 | 0.9 | 1 | |
| SMA-KHD150 | 14.5 | 5 | 5 | 1.3 | 1.4 | |
| SMA-KHD158 | 15.5 | 6 | 6 | 0.9 | 1 | |
Application:
- Broadband
- Instrumentation
- Phased array antennas
- Telecommunications
- Board-to-board interconnect
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
