50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector

Brand Name : ELT

Model Number : SMA-KWHD5

Certification : ROHS ISO-9001-2015

Place of Origin : China

MOQ : 100 pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100,000 Pieces Per Month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Plating : Gold Plated

Frequency : DC~18GHz

Gender : Female

Lifetime : 500 Cycles

Application : audio/vedio/microwave

Working voltage : 335V r.m.s at sea level

Type : SMA RF Connectors

Body style : Right Angle

Contact Now

50Ohm Female PCB Panel Solder Mount 90-degree SMA RF Connector​

  1. SMA series is a kind of mini, high-frequency RF coaxial connector.
  2. SMA RF connector is developed and produced according to MIL-C-39012 by Xi'an Elite Electronic Industrial Co., Ltd. With characteristics of small volume,good bandwidth,superior electrical characteristics.
  3. SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.
  4. The high performance connector developed by our company can reach to 20GHz.

50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector

Specification of SMA RF Connectors:

Electrical Characteristics
Impedance 50Ω
Frequency Range Connect with solf cable DC~12.4GHz
Connect with semi-rigid cable DC~18GHz
Rated Voltage 335VRMS*
Dielectrics Voltage-resistance 1000VRMS*
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Brass Gold plated
Female Sn-P Bronze Gold plated
Elastic Contact Beryllium bronze Nickel plated
Shell and other Metal Parts Brass Nickel plated
Stainless Passivation
Crimping Sleeve Brass Nickel plated
Tightening torque of connection 0.79－1.13N .m
Durability 500 cycles
Sealing Ring Silicone Rubber
Insulators PTFE


Features of SMA RF Connectors:

  • Sub-miniature coaxial connectors
  • Screw-on coupling
  • Light weight, compact and vibration proof design
  • Available in nickel or gold plating , in a wide variety of orientations and PCB terminations
  • Broad range with male, female and adapters variants.
  • Frequency range up to 18GHz
  • Intermateable with SMA2.9.
  • Excellent return loss

Detailed Images of SMA RF Connectors:

50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector

50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector

Application:
Network
Radar
Automotive
Satcom
Computer/LANs
Broadband
Instrumentation
Phased array antennas
Telecommunications
Aerospace

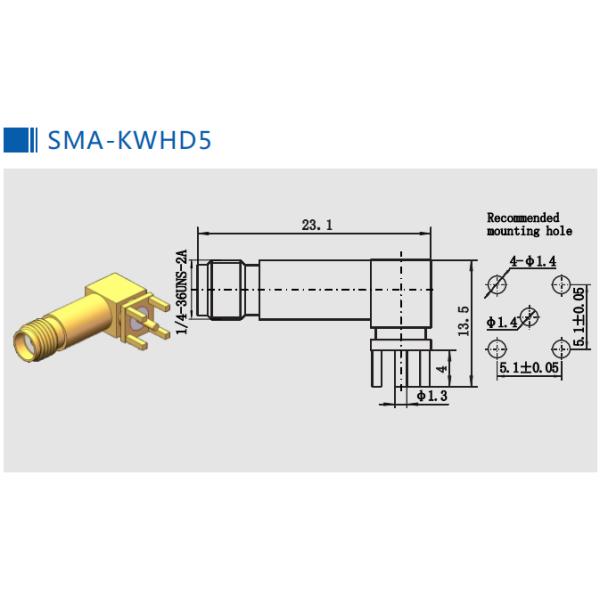

Interface Dimentions:(mm)

50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector

Related Product:

1.SMA Female Right Angle PCB Panel Solder Mount RF Coaxial Connector

50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector

Model No. L L1 Note
SMA-KWHD 13.5 3.9
SMA-KWHD9 11.5 1.9
SMA-KWHD11 15.6 6

NOTE:

We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
