Stainless Steel RF Connector Adapter K Female to SMP Female Straight Type

Brand Name : ELT

Model Number : ELT-K/SMP-KFK

Certification : ROHS ISO-9001-2015

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 35000pcs/year

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Material : Stainless Steel

Gender : Female

Product name : K/SMP Adaptor

Keywords : MMW Adaptor Connectors

Item : Millimeter Wave Connectors

Plating : Nickel/Gold Plated

Application : RF

Surface Plating : Passivate

Connector type : Straight RF Adaptor

Contact Now

K(2.92mm) Female to SMP Female Straight RF (MMW)Millimeter Wave Connectors Adapter


The high precision 50Ohm coaxial SMP to K type 2.92mm adaptor for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.


Specification:

Impedance 50Ω
Frequency Range DC - 40GHz
Voltage Rating 250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage 750 VRMS (Max. Sea Level)

Voltage Standing Wave Ratio
VSWR

≤1.25
Contact Resistance Center Conductor ≤ 3.0 mΩ
Outer Conductor ≤ 2.0 mΩ
Insulation Resistance ≥ 5000 MΩ
Inner Conductor Male plug: Brass, Gold Plated
Female Jack: BeCu, Gold Plated
Resilient Contact BeCu, Nickel Plated
Body / Shell / Housing

Brass, Gold Plated
Stainless Steel, Passivated

Insulator PTFE
Gasket Silicone Rubber
Temperature -55℃ ~ +125℃
Durability 500 Cycles
Torque 0.79 ~ 1.13 N.m
Insertion loss <.04 sqrt(f(GHz)) dB
Temperature range -65 ℃~+165 ℃
Contact pin Gold Plating

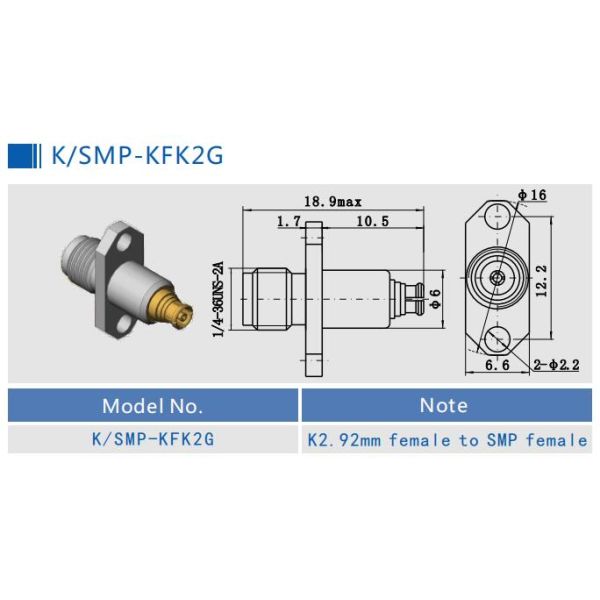

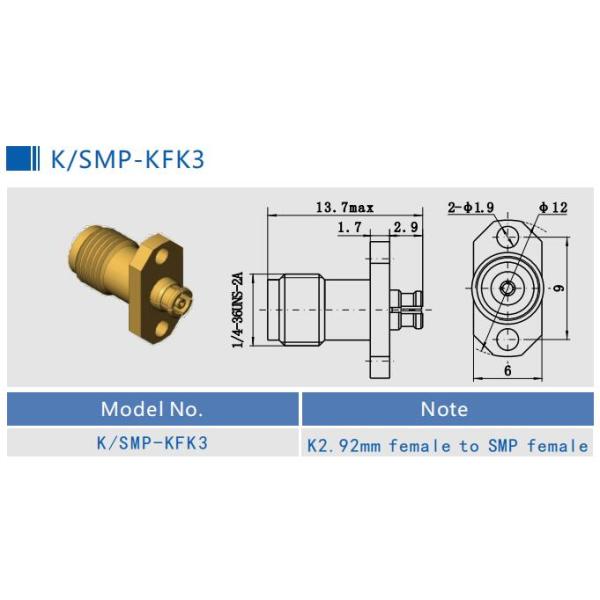

Product Drawing:

Stainless Steel RF Connector Adapter K Female to SMP Female Straight Type

Stainless Steel RF Connector Adapter K Female to SMP Female Straight Type

Stainless Steel RF Connector Adapter K Female to SMP Female Straight Type

Stainless Steel RF Connector Adapter K Female to SMP Female Straight Type

Features:

• The SMP to K(2.92mm) adaptor is a high frenquency microwave connectors.

• Stainless steel construction with nickel/gold plated

• Superior electrical performance to 40GHz can widly use in different files.

• Connectors in End Launch and Flange options

• Adapters to 2.4mm, SMP, 2.92mm, SMA.

• Connector mating interface per MIL-STD-348

• Great for applications that require high frequency transmission

• Excellent reliability where extreme shock & vibration conditions are experienced

• Quick connect cable plugs and adapter



Application:

* Avionics, radars
* Navigation systems
* Missiles and guidance systems

* Research centres
* Satellite communications
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications

Packaging & Delivery:

* Standard Export Carton
* According to customers' requirements

NOTE:


We have over 10,000 types of MMW Adapter, if the connector you are using is not found, please contact us with your details.
