20GHz Straight SMA Female RF Coaxial Bulkhead Connector for Satcom antenna Audio
1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 hole panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).
Specifiacation of 20GHz Straight SMA Female RF Coaxial Bulkhead Connector for Satcom antenna Audio(mm):
| Electronic and Material Characterials |
| Impedance | 50Ohm |
| Frequency Range | DC~18GHz |
| Rated Voltage | 335 VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 1000 VRMS (Maximum sea-level) |
| VSWR | ≤1.3 |
| Insulation Resistance | ≥5000MΩ |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated |
| Shell and other metal parts | Brass gold plated |
| Cable sheath | Brass nickle plated |
| Insulator | PTFE |
| Seal ring | Silicon rubber |
| Mating torque | 0.79 -1.13 N.m |
Key Features:
1.Frequency range up to 18GHz Sub-miniature coaxial connectors
2.Using a threaded interface
3.Available in passivation or gold plating
4.Brass and stainless steel material options
5.Wide variety of orientations and PCB terminations
6.Available in straight or right angle versions
7.With bulkhead, 2 hole panel, 4 hole panel or mountless options.
8.Broad range with male, female and adapters variants.
9.RoHS compliant
Application:
* Aerospace
* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications
* Board-to-board interconnect
* Base Station
* Mobile communication
* Outdoor facilities
* Radar,microwave
More Detail of Gold Plated SMA Female Crimp Bulkhead RF Coaxial Connector Antennas(mm):

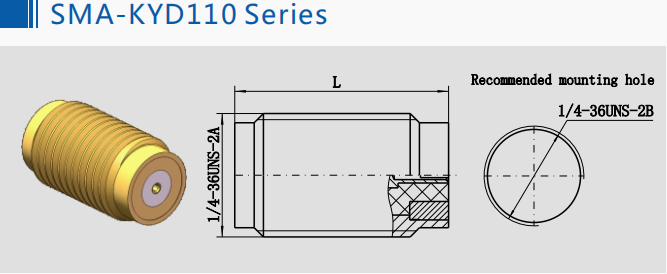

| Model Number | L | Description |
| SMA-KYD110 | 11 | SMA female crimp rf connector |
| SMA-KYD136G | 10.7 | Stainless steel SMA female crimp rf connector |
Other SMA RF Connector (mm):
1.

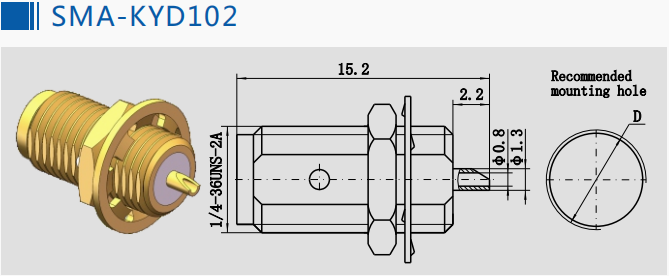

| Model Number | D | Description |
| SMA-KYD109 | 1/4-36UNS-2B | SMA female crimp rf connector |
2.
| Model Number | D | Description |
| SMA-KYD102 | 1/4-36UNS-2B | SMA female crimp rf connector |
3.
| Model Number | L | Description |
| SMA-KYD101 | 17.8 | SMA female crimp rf connector |
| SMA-KYD101G | 17.8 | Stainless steel SMA female crimp rf connector |
| SMA-KYD167G | 20.3 |
NOTE:
We have over 10,000 types of SMA Connector/Adapter, if the connector you are using is not found, please contact us with your details.
