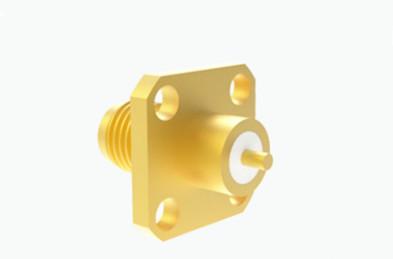

Brass Gold Plated SMA Female RF Connector with Microstrip & Flange Mount
High Performance SMA RF Connectors:
The SMA RF coaxial connector is a compact, high-frequency coaxial connector designed in accordance with MIL-C-39012. It boasts several advantages, including its small size, broad frequency range, superior mechanical and electrical performance, and high reliability. As such, it is the most commonly used RF coaxial connector. Its widespread application can be found in microwave communications, microwave measurement equipment, and other related fields. The line of high-performance connectors developed by our company can support frequencies up to 20GHz.
Our Advantanges:
- 20 years experience on RF & Microwave Components
- Qualified components supplier of China
- Rich cooperation experience with national high tech projects
- High performace and commercial grade components for choice
- Strict quality (QA Report),ISO9001,ROHS,CE,UL
- Factory area 35,000 sq.m with almost 1,000 experience staff
- 500+ national patents with 15 production lines
- Annual output value above US$300 million
- 50+ series products with 100,000 types
- Short delivery and competitive price
- Custom-made(ODM) orders are welcomed
Applicable Standard:
MIL-C-39012
IEC 60169-15
Product Display:
Electrical Characteristics:
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50Ω |
| Frequency Range | DC~18GHz |
| Rated Voltage | 335VRMS* |
| Dielectrics Voltage-resistance | 1000VRMS* |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ |
| VSWR | ≤1.3 |
Material & Mechanical Characteristics:
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated |
| Elastic Contact | Beryllium bronze Nickel plated |
| Shell and other Metal Parts | Brass Nickel plated |
| Stainless Passivation |
| Crimping Sleeve | Brass Nickel plated |
| Tightening torque of connection | 0.79－1.13N .m |
| Durability | 500 cycles |
| Sealing Ring | Silicone Rubber |
| Insulators | PTFE |
Applications:
1. Microwave Communication: In wireless communication systems, including base stations, antenna systems, and other related equipment, SMA connectors are used to link different components in the signal path.
2. Measurement and Test Equipment: Precision microwave test equipment and network analyzers often use SMA connectors as signal input and output interfaces to ensure accurate measurements.
3. Satellite Communications: In satellite uplink and downlink systems, SMA connectors are used to connect ground station transmit and receive equipment.
4. Scientific Experiments: In scientific research, especially experiments involving RF signals, SMA connectors are commonly used to build connections between experimental setups and instruments.
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
