Product Description
SMP(M) is a hermetically sealed miniature push-on RF coaxial connector, which has the characters of small volume, light weight, excellent seismic performance, and widely working broadband,etc.
Operating frequency up to 18GHz (our product of high performance SMP connector can reach 40GHz) and the plug has three interface form with full detent, limited detent and smooth bore(including with braking).
Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connectors. Apply for the install situation with the requirement of high reliability modular intensive.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | 0.04GHz~40GHz |
| | 170VRMS |
| Dielectrics Voltage-resistance | 500VRMS |
| Insulation Resistance | ≥5000MΩ |
| | Outer conductor | hermetic≤4mΩ |
| Center conductor | hermetic≤26mΩ |

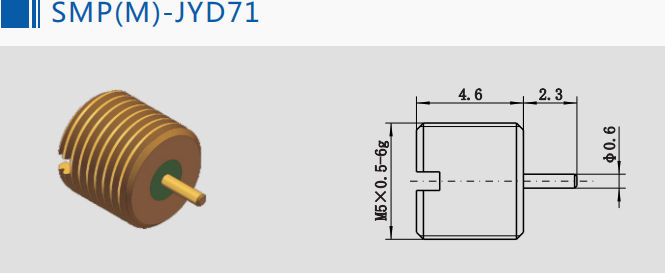

Outline Drawing of Hermetically Sealed SMP Male Thread to Straight Bulkhead RF Coaxial Connector(mm):
![Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector]()
Packaging
Other Hermetically Sealed SMP RF Connector(mm):
1.
| Model Number | Description |
| SMP(M)-JYD18G | Stainles steel SMP male limited detent bulkhead rf connector |
| SMP(M)-JYD18G-S | Stainles steel SMP male smooth bore bulkhead rf connector |
2.
| Model Number | Description |
| SMP-JYD48G-F | Stainless steel SMP male full detent bulkhead rf connector |
3.
| Model Number | Description |
| SMP(M)-JYD71 | Hermetically sealed SMP male limited detent bulkhead rf connector |
Key Features:
Mating styles:push-on and snap-on
Detent systems:limited detent
Available for board-to-board and cable-to-board configurations
High reliability
High mechanical stability
Up to 40GHz
Applications:
Antennas
Broadband
5G mobile telecommunications
* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic, and cable connector configurations
* Custom connectors available
NOTE:
We have many types of SMP Hermetically Sealed Connectors for choice, if the product you are using is not found, please contact us for full catologs. Custom dimensions is accepted.
