Durable TNC Female Right Angle Stainless Steel 4-hole Flange RF Connector

Name: Durable TNC Female Right Angle Stainless Steel 4hole Flange RF Connector
Brand: ELT (Elite)
Price: 1 USD

Wholesale Durable TNC Female Right Angle Stainless Steel 4-hole Flange RF Connector from china suppliers

Brand Name : ELT (Elite)

Model Number : TNC-KWFD24G

Certification : ISO-9001-2015

Place of Origin : China

MOQ : 100

Price : Negotiable

Delivery Time : Within 5-7 workdays(for stocks)

Packaging Details : Standard Export Carton

Product name : TNC Conector

Plating : Nickel Plated

Impedance : 50Ω

Durability : 500 Cycles

Contact material : Brass, BeCu

Material : Bass

Design Standard : IEC 60169-17

Type : RA

Contact Now

Durable TNC Female Right Angle Stainless Steel 4-hole Flange RF Connector

The TNC series product is essentially a threaded variant of the BNC connector, distinguished by its screw thread mechanism for secure attachment. These compact, threaded, waterproof connectors maintain a consistent 50-ohm impedance and operate within the DC to 11GHz frequency range. There are two main types of TNC connectors: standard and reverse polarity. Despite being constructed from die-cast and molded components, which makes them lower in cost compared to industrial or high-performance products, they are highly suitable for a wide range of commercial applications. TNC connectors are frequently used for antenna connections and have diverse applications in avionics, communications, and various industrial sectors.

Durable TNC Female Right Angle Stainless Steel 4-hole Flange RF Connector

Specification
Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~4GHz
Rated Voltage	2500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	750VRMS (Maximum sea-level)
Insulation Resistance	≥2000MΩ
Contact Resistance	Outer conductor	≤6mΩ
	Center conductor	≤1.5mΩ
VSMR	≤1.3

Mechanical Specification

Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500Cycles
Contact Retention	10N min
Cable Retention	100N min
Mating Force	13.6N max
Un-Coupling Force	13.6N max

Environmental Specification:

Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64

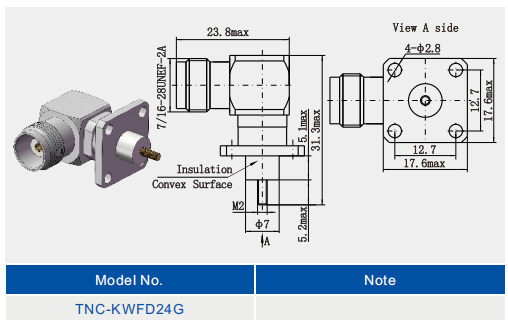

Detailed Drawing
Durable TNC Female Right Angle Stainless Steel 4-hole Flange RF Connector

Features:

Mechanical properties

Strong anti-vibration: TNC connectors have strong anti-vibration performance, suitable for mobile communication equipment in vibration conditions.
High mechanical strength: the use of stainless steel and sturdy threaded connections, making the TNC connector has high mechanical strength, can withstand a certain degree of external pulling, extrusion, etc., not easy to damage.

Application:
1. Machine-to-machine communication (M2M): In M2M communication scenarios, TNC connectors are used to connect relevant wireless communication modules to realize data transmission between devices and support the development of the Internet of Things.
2.Security and safety equipment: TNC connectors may be used in the wireless transmission part of the security monitoring system to ensure stable and reliable wireless transmission of monitoring data.
3.Detection equipment: The RF signal transmission interface in some specific wireless detection equipment adopts TNC connector to meet the demand of detection.

NOTE:
We have over 10,000 types of TNC Connector, if the connector you are using is not found, please contact us with your details.
