Nickel Plated TNC Female to Female 4-hole Flange RF Coaxial Connector

  • 1
  • 2

Brand Name : ELT (Elite)

Model Number : TNC-KFK

Certification : ISO-9001-2015

Place of Origin : China

MOQ : 100

Price : Negotiable

Delivery Time : Within 5-7 workdays(for stocks)

Packaging Details : Standard Export Carton

Product name : TNC Conector

Plating : Nickel Plated

Impedance : 50Ω

Durability : 500 Cycles

Contact material : Brass, BeCu

Material : Brass

Design Standard : IEC 60169-17

Type : Straight

Contact Now

Nickel Plated TNC Female to Female 4-hole Flange RF Coaxial Connector

The TNC series product is a threaded variant of the BNC connector, distinguished by its screw-thread mating mechanism. These compact, threaded, and waterproof units are designed to maintain a consistent 50-ohm impedance and operate within the DC to 11 GHz frequency range. There are two variants of TNC connectors: standard and reverse polarity. These cost-effective connectors typically feature die-cast and molded components. While their performance may not match that of industrial or high-performance products, they are well-suited for a wide array of commercial applications. TNC connectors are widely used in antenna connections and have diverse applications in avionics, communications, and various industrial sectors.

Nickel Plated TNC Female to Female 4-hole Flange RF Coaxial Connector

Specification
Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance
50Ω
Frequency Range
DC~4GHz
Rated Voltage
2500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
750VRMS (Maximum sea-level)
Insulation Resistance
≥2000MΩ
Contact Resistance
Outer conductor
≤6mΩ
Center conductor
≤1.5mΩ
VSMR
≤1.3


Mechanical Specification

Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500Cycles
Contact Retention 10N min
Cable Retention 100N min
Mating Force 13.6N max
Un-Coupling Force 13.6N max


Environmental Specification:

Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64

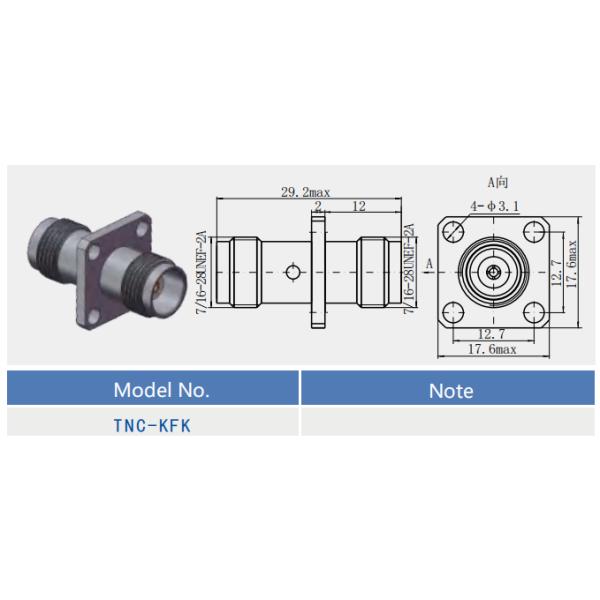

Detailed Drawing
Nickel Plated TNC Female to Female 4-hole Flange RF Coaxial Connector
Features:

For Electrical Performance

1. Wide frequency range: capable of withstanding frequencies up to 11GHz, and some precision designs can even be applied up to 18GHz, which can meet the needs of a variety of high-frequency application scenarios.
2. Good impedance matching: A common impedance of 50Ω is essential to ensure the stability and performance of signal transmission, which reduces signal reflection and distortion and ensures the accuracy of signal transmission.
3. Low Insertion Loss: Low insertion loss means that signals passing through the connector will only introduce a small amount of signal attenuation, which has a low impact on the accuracy and precision of signal transmission, especially in high-frequency applications.


Application:

Communication field

1. Wireless communication base station: In mobile communication base stations, TNC adapters are used to connect different RF components, such as antennas, filters, power amplifiers and so on. Due to its good electrical performance and mechanical durability, it can ensure stable transmission of high-frequency signals, reduce signal loss and interference, and improve the communication quality and coverage of the base station. For example, the antenna interface of the base station is adapted to the feeder cable to ensure effective signal transmission and reception.
2. Microwave communication system: In microwave communication, TNC adapters can be used to connect different transmission components such as waveguide and coaxial cable to realize the transmission and distribution of microwave signals. Its high-precision threaded connection structure can ensure good contact under high frequency, reduce VSWR and improve the transmission efficiency of microwave signals, which is commonly used in microwave relay stations, satellite communication ground stations and other equipment.
3. Cable TV system: Cable TV network signal distributor, branch and other equipment, often use the TNC adapter to connect coaxial cable, the TV signal distribution to the various user terminals.TNC adapter waterproof, dustproof performance and stable electrical performance, can adapt to the outdoor and indoor and other complex environmental conditions, to ensure that the high quality of cable TV signal transmission.


NOTE:
We have over 10,000 types of TNC Connector, if the connector you are using is not found, please contact us with your details.
