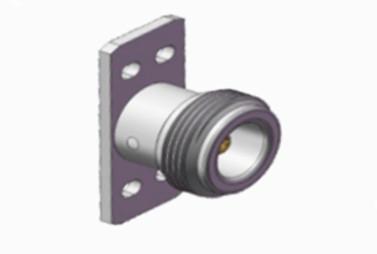

N Female 4-hole Flange RF Coaxial Connector with Microstrip
N type connectors are coaxial connectors with threaded coupling, known for their excellent anti-vibration capabilities and electrical performance. They support frequencies up to 18GHz and are compatible with various types of RF cables. These connectors are widely used in applications such as aviation, aerospace, radar, microwave and digital communications, and test and measurement instruments. We offer customization services for type-n connectors to meet the specific requirements of our customers.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~11GHz(Max.18GHz) |
| Rated Voltage | 1000VRMS*(Max.Sea Level) |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Durability | 500 Cycles |
Detailed Drawing
Outline Drawing:
Features:
1. Low Loss: Adopting high quality materials and precise manufacturing process, the loss generated during signal transmission is extremely low, which helps to improve the efficiency and quality of signal transmission.
2. High shielding: the shell is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.
Applications:
1. High-performance electrical characteristics: N-type microstrip connectors feature low loss and high shielding effectiveness to ensure signal integrity and accuracy during transmission. This allows it to excel in high-frequency applications, such as wireless communications, satellite communications and other fields.
2. Wide frequency range adaptability: N-type microstrip connectors support wide bandwidth transmission from low to high frequencies, and some of the enhanced types of N-type connectors can even reach 18GHz or higher frequency range to meet the needs of different application scenarios.
3. Reliable Mechanical Connection: With the threaded connection, N type microstrip connectors can maintain a stable connection under vibration and shock environments, which reduces the risk of loosening connection or signal interruption caused by environmental factors.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
|
|
