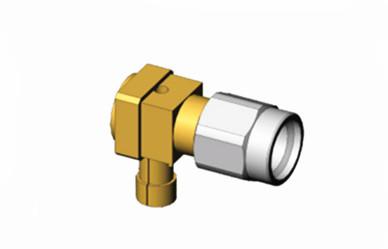

Brass/SS Right Angle Male RF Connector for CXN3506/MF108A Cable Plug
The K type, also known as the 2.92 type connector, is a widely used series of millimeter wave connectors with a frequency range up to 40 GHz. It is compatible with SMA and 3.5 series products for interchangeability and features an air interface. This connector boasts a compact size, lightweight design, high-frequency operation, and reliable connections.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50 Ω |
| Frequency Range | DC - 40 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
Voltage Standing Wave Ratio
VSWR | ≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| | Outer Conductor ≤ 2.0 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| | Female Jack: BeCu, Gold Plated |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated
Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Other 2.92mm Male Female RF Connector
| Part Number | |
| K-KFD21 | 2.92mm Type K Female RF Coaxial Connector |
| K-KFD87G | Stainless steel 2.92mm Type K Female RF Coaxial Connector |
| K-KFD42 | 2.92mm Type K Female RF Coaxial Connector |
| K-JFD61G | Stainless steel 2.92mm Type K Male RF Coaxial Connector |
1.
2.
3.
4.
Features:
1. Compact Size: Compared to other types of RF connectors, such as 3.5mm/SMA connectors, the 2.92mm connector is smaller and more compact. Its miniaturized design makes it ideal for use in space-constrained applications, like portable test equipment and high-density circuit boards.
2. Good Compatibility: The design of the 2.92mm connector takes into account compatibility with SMA and 3.5mm connectors. While there are some differences between them, they can be interconnected under certain circumstances, providing engineers with greater flexibility.
Application:
1. Test and Measurement Equipment: For instruments like network analyzers, spectrum analyzers, and signal generators, the 2.92mm connector facilitates connections between test ports and devices under test. Its precision and stability enhance the accuracy of measurement results.
2. Medical Devices: In certain advanced medical equipment, such as magnetic resonance imaging (MRI) and ultrasound devices, the 2.92mm connector is employed to link RF coils, sensors, and electronic devices. Its superior performance guarantees the stability and reliability of these medical devices.
3. Scientific Research: In physics, chemistry, and materials science research experiments, the 2.92mm connector connects experimental apparatus and chambers. Its high precision and dependability assist researchers in obtaining accurate experimental data.
